Glass Epoxy Laminates
Epoxy sheet majorly known as fiberglass sheet manufactured by impregnating glass cloth with epoxy resins under heat and high pressure. It can be used where high mechanical and electrical applications are required. They are widely known for their high strength and flame retardant properties.

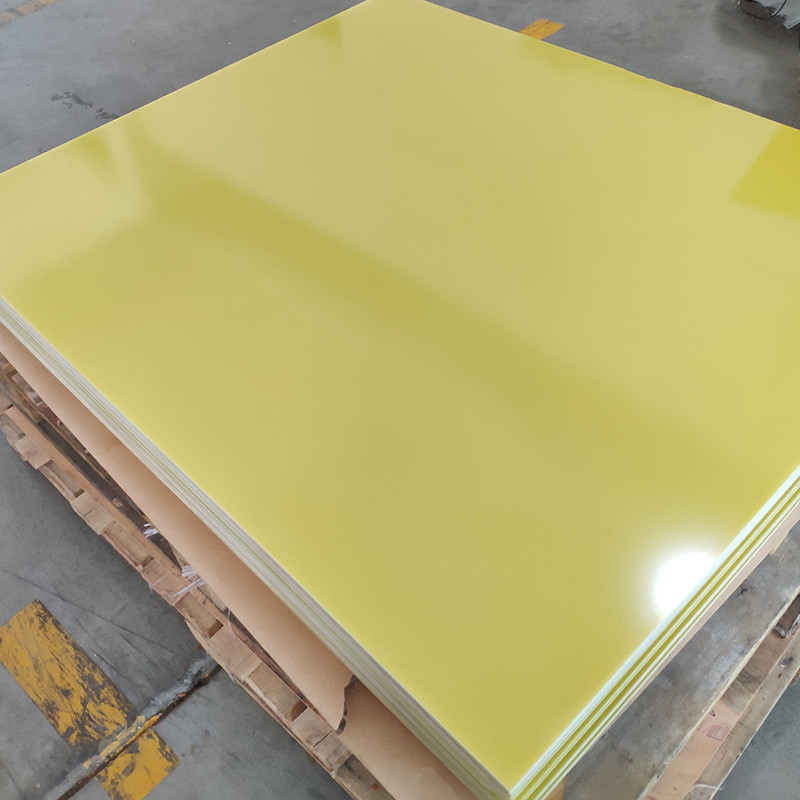

FR4 Grade
This grade provides excellent machinability and moisture/chemical resistance. Mostly used where fire retardant (self extinguishing) properties are required.
| Size (MM) | 1030 x 1230mm |
| Density | 1.7 to 1.9 g/cm3. |
| Standard Color | Yellowish Green |
| Thickness | 0.5mm to 50mm |
| Temperature Resistances | 150C |
- High Volatge Applications
- Battery housing
- Automobile electrical parts
- Motors
- Transformers
- Switchgears
G10 Grade
This grade is widely known for its excellent strength and mechanical properties. It is manufactured by impregnating glass colth with epoxy resins and compressed under high heat & Pressure. It does'nt provide flame retardant properties & expensive than FR4.
| Size (MM) | 1220 x 1220mm, 1220 X 2440mm |
| Density | 1.7 to 1.9g/cm3. |
| Color | Green |
| Thickness | 0.5mm to 50mm |
- High Strength Electrical Applications
- Aviation Industry
- Automobile spare
- Battery Housing
- High Precision Components
G11 Grade
This grade is known for its high electrical, mechanical and thermal properties. It works excellently in elevated temperatures and both wet/dry conditions.
| Size (MM) | 610 x 1220mm,1220 x 1220mm, 1220 X 2440mm |
| Density | 1.3 to 1.4g/cm3. |
| Standard Color | Brown/Black/Natural |
| Thickness | 0.5mm to 50mm |
- Suitable for Corosive Environment
- High precision components
- Battery spare parts
- Automobile components
